Floors and Joints

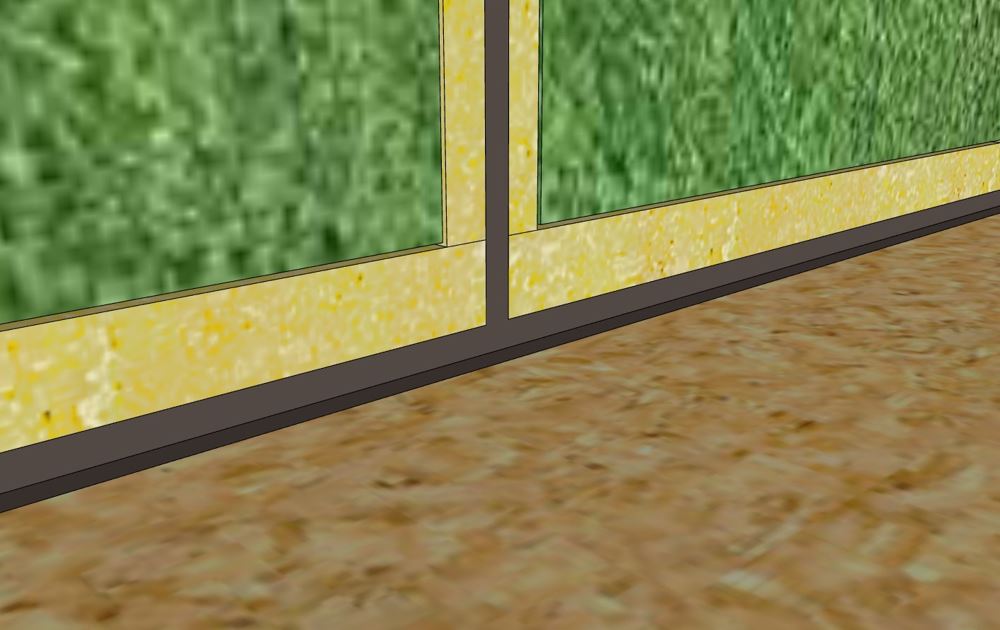

Step 1Slide 29 - Photo 5.JPG Step 2Slide 29 - Photo 4.JPG Step 3
Slide 29 - Photo 3.JPG
Step 4Slide 29 - Photo 2.JPG Step 5Slide 29 - photo 1.JPG

Illustrations Source: Summerhill

If a pipe or wire needs to run through the vapour retarder, make sure to seal properly (As explained in the sealing penetrations section). If the vapour retarder is also going to be used as the air barrier, make sure to overlap each section of vapour retarder by a minimum of 4" and seal with acoustical sealant.
