Getting Prerequisites

Before working on the Demo, let's have a look at the prerequisites. We will be needing:

Python

TensorFlow

Tensorboard

Protobuf v3.4 or above

Setting up the Environment

Now to Download TensorFlow and TensorFlow GPU you can use pip or conda commands:

# For CPU

pip install tensorflow

# For GPU

pip install tensorflow-gpu

For all the other libraries we can use pip or conda to install them. The code is provided below:

pip install --user Cython

pip install --user contextlib2

pip install --user pillow

pip install --user lxml

pip install --user jupyter

pip install --user matplotlib

Next, we have Protobuf: Protocol Buffers (Protobuf) are Google's language-neutral, platform-neutral, extensible mechanism for serializing structured data, - think of it like XML, but smaller, faster, and simpler. You need to Download Protobuf version 3.4 or above for this demo and extract it.

Now you need to Clone or Download TensorFlow's Model from Github. Once downloaded and extracted rename the "models-masters" to just "models".

Now for simplicity, we are going to keep "models" and "protobuf" under one folder "Tensorflow".

Next, we need to go inside the Tensorflow folder and then inside research folder and run protobuf from there using this command:

"path_of_protobuf's bin"./bin/protoc object_detection/protos/

To check whether this worked or not, you can go to the protos folder inside models>object_detection>protos and there you can see that for every proto file there's one python file created.

Main Code

After the environment is set up, you need to go to the "object_detection" directory and then create a new python file. You can use Spyder or Jupyter to write your code.
First of all, we need to import all the libraries-
import numpy as np
import os
import six.moves.urllib as urllib
import sys
import tarfile
import tensorflow as tf
import zipfile

from collections import defaultdict
from io import StringIO
from matplotlib import pyplot as plt
from PIL import Image

sys.path.append("..")
from object_detection.utils import ops as utils_ops

from utils import label_map_util

from utils import visualization_utils as vis_util

Next, we will download the model which is trained on the COCO dataset. COCO stands for Common Objects in Context, this dataset contains around 330K labeled images. Now the model selection is important as you need to make an important tradeoff between Speed and Accuracy. Depending upon your requirement and the system memory, the correct model must be selected.

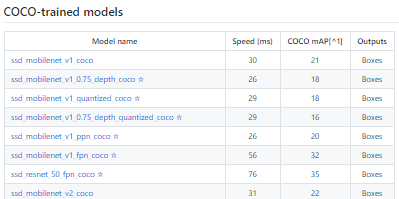

Inside "models>research>object_detection>g3doc>detection_model_zoo" contains all the models with different speed and accuracy(mAP).

Next, we provide the required model and the frozen inference graph generated by Tensorflow to use.

MODEL_NAME = 'ssd_mobilenet_v1_coco_2017_11_17'
MODEL_FILE = MODEL_NAME + '.tar.gz'
DOWNLOAD_BASE = 'http://download.tensorflow.org/models/object_detection/'

PATH_TO_CKPT = MODEL_NAME + '/frozen_inference_graph.pb'

PATH_TO_LABELS = os.path.join('data', 'mscoco_label_map.pbtxt')

NUM_CLASSES = 90


This code will download that model from the internet and extract the frozen inference graph of that model.

opener = urllib.request.URLopener()
opener.retrieve(DOWNLOAD_BASE + MODEL_FILE, MODEL_FILE)
tar_file = tarfile.open(MODEL_FILE)
for file in tar_file.getmembers():
file_name = os.path.basename(file.name)
if 'frozen_inference_graph.pb' in file_name:
tar_file.extract(file, os.getcwd())

detection_graph = tf.Graph()
with detection_graph.as_default():
od_graph_def = tf.GraphDef()
with tf.gfile.GFile(PATH_TO_CKPT, 'rb') as fid:
serialized_graph = fid.read()
od_graph_def.ParseFromString(serialized_graph)
tf.import_graph_def(od_graph_def, name='')


Next, we are going to load all the labels

label_map = label_map_util.load_labelmap(PATH_TO_LABELS)
categories = label_map_util.convert_label_map_to_categories(label_map, max_num_classes=NUM_CLASSES, use_display_name=True)
category_index = label_map_util.create_category_index(categories)

Now we will convert the images data into a numPy array for processing.

def load_image_into_numpy_array(image):
(im_width, im_height) = image.size
return np.array(image.getdata()).reshape(
(im_height, im_width, 3)).astype(np.uint8)

The path to the images for the testing purpose is defined here. Here we have a naming convention "image[i]" for i in (1 to n+1), n being the number of images provided.

PATH_TO_TEST_IMAGES_DIR = 'test_images'
TEST_IMAGE_PATHS = [ os.path.join(PATH_TO_TEST_IMAGES_DIR, 'image{}.jpg'.format(i)) for i in range(1, 8) ]

This code runs the inference for a single image, where it detects the objects, make boxes and provide the class and the class score of that particular object.

def run_inference_for_single_image(image, graph):
with graph.as_default():
with tf.Session() as sess:
# Get handles to input and output tensors
ops = tf.get_default_graph().get_operations()
all_tensor_names = {output.name for op in ops for output in op.outputs}
tensor_dict = {}
for key in [
'num_detections', 'detection_boxes', 'detection_scores',
'detection_classes', 'detection_masks'
]:
tensor_name = key + ':0'
if tensor_name in all_tensor_names:
tensor_dict[key] = tf.get_default_graph().get_tensor_by_name(
tensor_name)
if 'detection_masks' in tensor_dict:
# The following processing is only for single image
detection_boxes = tf.squeeze(tensor_dict['detection_boxes'], [0])
detection_masks = tf.squeeze(tensor_dict['detection_masks'], [0])
# Reframe is required to translate mask from box coordinates to image coordinates and fit the image size.
real_num_detection = tf.cast(tensor_dict['num_detections'][0], tf.int32)
detection_boxes = tf.slice(detection_boxes, [0, 0], [real_num_detection, -1])
detection_masks = tf.slice(detection_masks, [0, 0, 0], [real_num_detection, -1, -1])
detection_masks_reframed = utils_ops.reframe_box_masks_to_image_masks(
detection_masks, detection_boxes, image.shape[0], image.shape[1])
detection_masks_reframed = tf.cast(
tf.greater(detection_masks_reframed, 0.5), tf.uint8)
# Follow the convention by adding back the batch dimension
tensor_dict['detection_masks'] = tf.expand_dims(
detection_masks_reframed, 0)
image_tensor = tf.get_default_graph().get_tensor_by_name('image_tensor:0')

# Run inference
output_dict = sess.run(tensor_dict,
feed_dict={image_tensor: np.expand_dims(image, 0)})

# all outputs are float32 numpy arrays, so convert types as appropriate
output_dict['num_detections'] = int(output_dict['num_detections'][0])
output_dict['detection_classes'] = output_dict[
'detection_classes'][0].astype(np.uint8)
output_dict['detection_boxes'] = output_dict['detection_boxes'][0]
output_dict['detection_scores'] = output_dict['detection_scores'][0]
if 'detection_masks' in output_dict:
output_dict['detection_masks'] = output_dict['detection_masks'][0]
return output_dict

Our Final loop, which will call all the functions defined above and will run the inference on all the input images one by one, which will provide us the output of images in which objects are detected with labels and the percentage/score of that object being similar to the training data.

for image_path in TEST_IMAGE_PATHS:
image = Image.open(image_path)
# the array based representation of the image will be used later in order to prepare the
# result image with boxes and labels on it.
image_np = load_image_into_numpy_array(image)
# Expand dimensions since the model expects images to have shape: [1, None, None, 3]
image_np_expanded = np.expand_dims(image_np, axis=0)
# Actual detection.
output_dict = run_inference_for_single_image(image_np, detection_graph)
# Visualization of the results of a detection.
vis_util.visualize_boxes_and_labels_on_image_array(
image_np,
output_dict['detection_boxes'],
output_dict['detection_classes'],
output_dict['detection_scores'],
category_index,
instance_masks=output_dict.get('detection_masks'),
use_normalized_coordinates=True,
line_thickness=8)

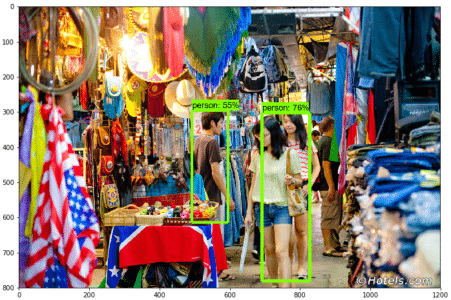

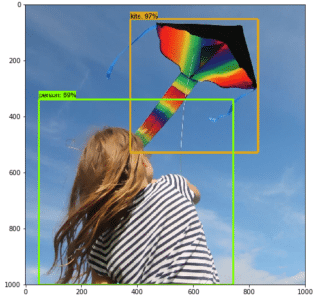

plt.figure(figsize=IMAGE_SIZE)
plt.imshow(image_np)

Now, let's move ahead in our Object Detection Tutorial and see how we can detect objects in Live Video Feed.
