Uses

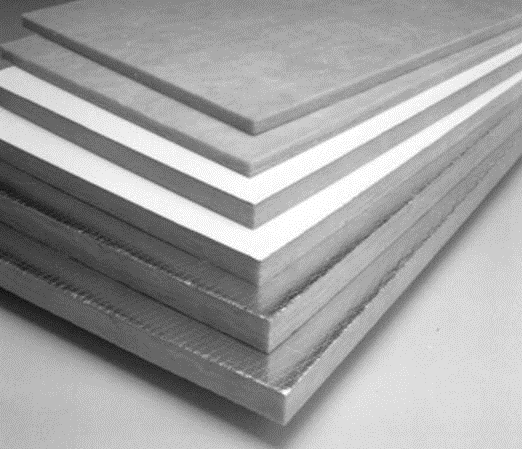

Fig. 24. Fibrous glass insulation boards.
Fig. 24. Fibrous glass insulation boards.

Fibrous glass insulation boards may be applied to the exterior of sheet metal ducts, housings, and plenums. These semi-rigid to rigid boards are also suitable for insulating chillers and other cold or hot equipment, and can be used in applications operating within the temperature range of 0˚F (-18˚C) to 450˚F (232˚C). They are available in thicknesses from 1 in. (25 mm) to 4 in. (102 mm) in 1/2 in. (13 mm) increments.
